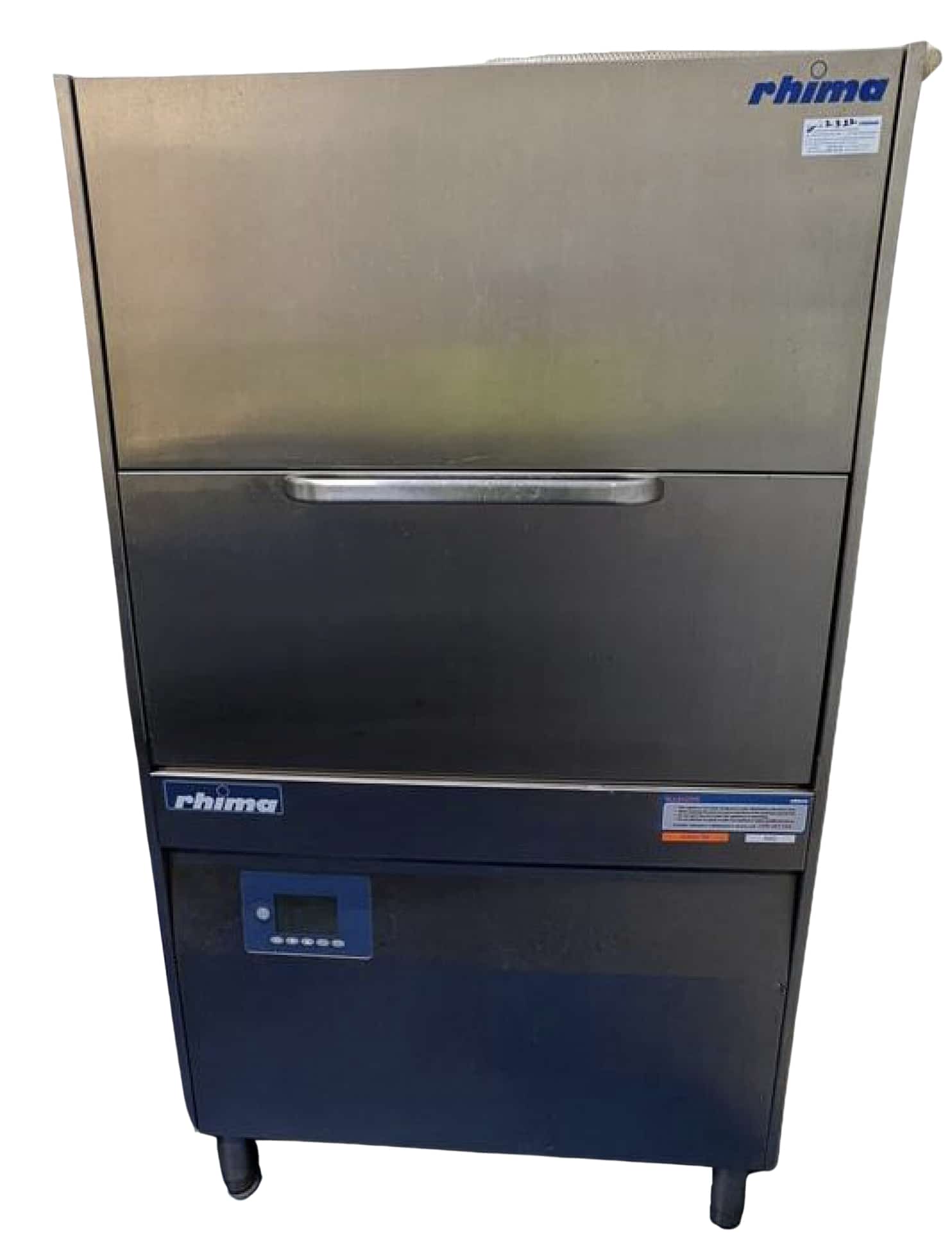

Rhima LP3 S Plus Pot & Utensil Washer
Rhima LP3 S Plus Pot & Utensil Washer – DDE
With a rack size of 850x725mm and a useful washing height of 650mm the LP3 is an ideal unit to wash and sanitise utensils, trays etc in a small to medium sized bakery.
Key Features
- Double skinned construction
- Deep-formed tank
- Independent stainless steel wash & rinse arms
- Double tank filter with debris collection system & pump filter
- Self cleaning vertical pump
- Electronic controls
- Four washing cycles
- Energy saving
- Thermostop to guarantee the rinse temperature to HACCP requirements
- Multichromatic start key
- Optional steam condenser
- Rack size of 850x725mm
- Washing height of 650mm
The LP3-S Plus is Rhima’s most powerful front loading pot and utensil washer.
All LPs have the same programming and finish, which means larger operations can use different sized machines, all with the same operating features.
Technical Specifications:
- Racks/hour (theoretical) 20/10/7
- Cycle time * 180/360/540 sec+custom
- Power supply 415V,3Ø+N 50Hz
- Wash pump 2 x 1.7kW
- Booster heater 9kW
- Wash tank heater 6kW
- Total power 13kW
- Total current 3 x 20Amp
- Wash tank capacity 78ltrs
- Booster heater capacity 20ltrs
- Water consumption (per cycle) 4.3 ltrs
- Min/max water pressure *2. 200/600kPa
- Min/max water temp *3. 50/65°C
- Rack size 850 x 725mm
- Useful height 650mm
- Max dish height 650mm
- Weight (shipping) 245kg
- Dimensions (shipping) 950Lx1020Wx1930H
- Drain type Gravity (min 3ltr/sec)
- Water connection R3/4” hose
- Required hot water supply 120 ltr/hr
- Drain hose diameter 30mm
- Rinse aid dispenser Standard
Also Known As: Now known as RP-3 pot and utensil washer
